Gauges & Instruments Calibration



Our Calibration Facilities

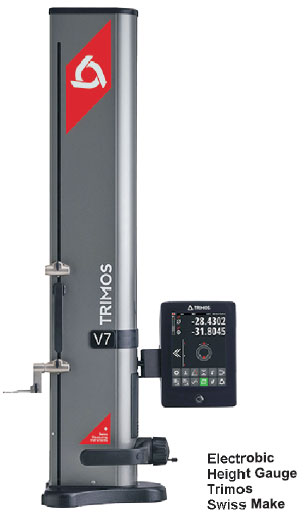

VLM - 214 MUB Make Trimos

2D - MEASURING Electronic Level



Make - SIP ULM - 214 mu Laser Interferometer

Make - SIP   ULM - 214 mu Make Renishaw Laser Interferometer



ball bar qc-20 Laser Interferometer

Ball Bar Test QC-20

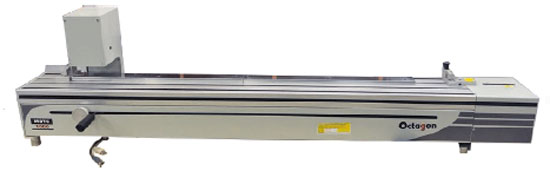

Scale and Tape Measuring System

Scale and Tape Measuring System



Gauges & Instruments Calibration



Gauges & Instruments Calibration

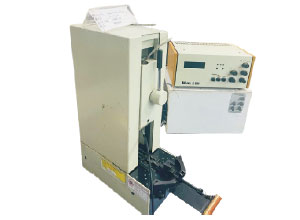

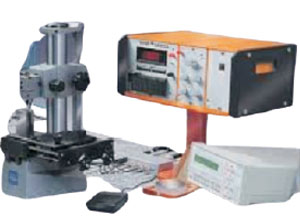

Make Stynmyer Slip Gak Calibrated Slip Gauge Calibrater Make - Tesa Swiss



Gauges & Instruments Calibration
  Electronic Probe



Floating Carriage Micrometer

Floating Carriage Micrometer





Mechanical  Instrument Range
Vernier Caliper ( Digital / Dial Type ) 0 -1000 mm
External Micrometer ( Flat / Ball point / Flange type / Blade / Pointed ) 0-1000 mm
Internal Micrometer ( Two Point ) 0-1000 mm
Internal Micrometer ( Three Point ) 0-100 mm
Height Vernier ( Digital / Dial type ) 0 -1000 mm
Depth Vernier ( Digital / Dial type ) 0-600 mm
Depth Micrometer 0-600 mm
Plunger Type Dial Gauge (L.C 0.0001 mm and Coarser) 0-100 mm
Lever Type Dial Gauge (L.C 0.0001 mm and Coarser) 0-2 mm
Dial Bore Gauge ( Transmission Accuracy ) 0-2 mm
Measuring Scale 0-2000 mm
Measuring Tape 0-50000 mm
Pistal Caliper 0-100 mm
Dial Thickness Gauge 0-100 mm
Internal Caliper 0-200 mm
Dial Snap Gauge 0-200 mm
Paint thickness Gauge 0-2 mm
Ultrasonic Thickness Gauge 0-200 mm
Bevel Protector, Degree Protector, Inclinometer 0-90-00
Spirit Level 0.01 mm/m

Mechanical  Gauges ( Limit Gauge) Range
Plain Plug Gauge / Width Gauge / Flush Pin Gauge / Depth Gauge 0-500 mm
Snap Gauge / Gap Gauge 0-500 mm
Measuring Pin 0-20 mm
Thread Ring Gauge / Thread Plug Gauge 0-300 mm
Taper Thread Ring Gauge / Taper Thread Plug Gauge 0-100 mm
Plain Taper Ring Gauge / Plain Taper Plug Gauge. 0-100 mm

Mechanical  Gauges ( Setting Gauges) Range
Setting Ring Gauge, Plain Ring Gauge 0-300 mm
Thread Ring Gauge / Thread Plug Gauge 0-300 mm
Surface Finish Master Ra Value

Mechanical Gauges ( Form Gauges) Size
Radius Gauge 30 mm
Pitch Gauge 10 mm
Angle Gauge 1800
Drill Gauge 50 mm
Rivet Gauge 50 mm
Wire Gauge 50 mm
Weld Filet Gauge 25 mm

Mechanical Gauges ( References) Size
Surface Plate ( AT Site) 5000 x 5000 mm
Straight Edge ( AT Site , Inhouse) 3000 mm
Angle Plate 300 x 300 mm
Right Angle 600 mm
V- Block 250 mm
Straight Mandrel 100 mm
Bench Center 300 mm
Sine Bar  200 mm
Sine Center 200 mm
Angle Block 300 X 300 mm
Comparator Base 300 x 300 mm
Engineers Parallel 100 mm

Mechanical Equipment Range
Length Measuring Machine 0-10000 mm
Tape and Scale Measuring Machine 0-5000 mm
Floating Carriage Micrometer 0 – 200 mm
Dial Calibration Tester 0 – 25 mm
Electronic Probe 0 – 25 mm
Profile Projector 0 – 300 mm

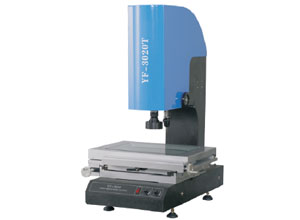

Video Measuring System 0 – 300 mm
Electronic Height Gauge ( 2D) 0 – 1000 mm

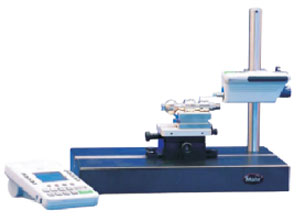

Surface Roughness Tester Ra Value

Mechanical Master Size
Thread Measuring Wire 6.35 mm
Glass Graticule 300 mm
Angular Graticule 360 0
Cylindrical Setting Master 100 mm
Square Master 600 mm
Long Slip Gauge 600 mm
Length Bar 600 mm
Caliper Checker 600 mm
Slip Gauge 100 mm


Machine Tool Range
CNC Machine Calibration 0-10000 mm
Ball bar Test Circularity 0-600 mm




We are service provider and our setup is situated at Old Warje Jakat Naka, Pune ( Maharashtra, India )
